EXO RACK

Made in the USA

The re-designed Exo Rack released April 2025. The Exo Rack now uses our camera housing and DOES NOT use the Teraflex housing or Factory Brake Light.  Some images and videos may display old product design. Works on JK and JL.  Camera mount works with JL, but customers could retrofit a camera to work with a JK

We recommend watching the installation video at the bottom of this page before purchase, to make sure it is compatible with your tire carrier.  Also read through the entire product listing before purchase. This product will work on factory JL tire carriers, but only if the center moulded camera housing is removed (by cutting) from the factory carrier. The exo rack mounting plate, has to have a completely flat mounting surface where the hub of the wheel mounts.  The video explains what is necessary on all tire carriers to be compatible with the Exo rack. ***the video is of the old version of the Exo Rack, but installation is the same***

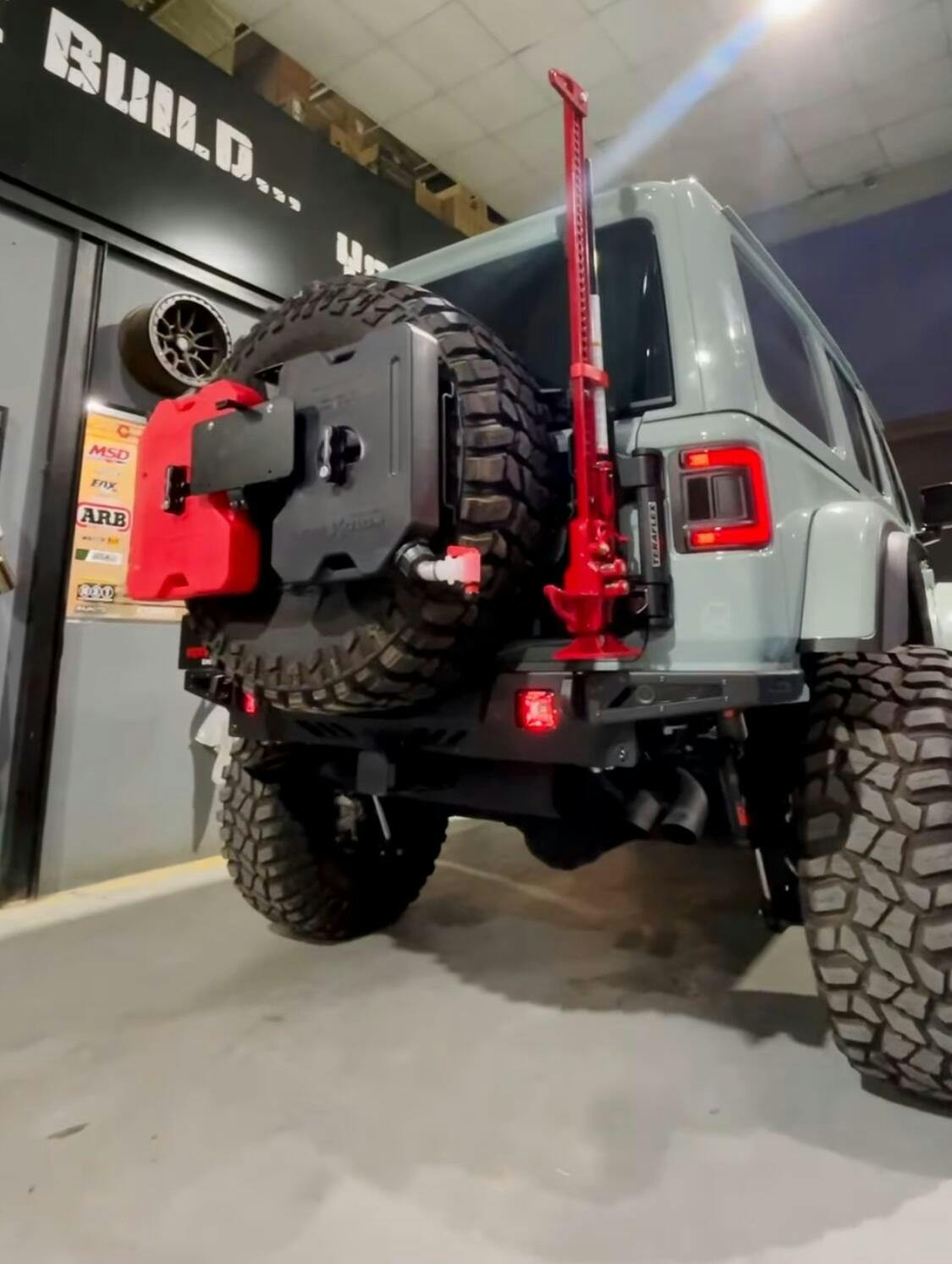

The EXO Rack provides the following benefits:

• Mount qty 2-2 gallon RotoPax Containers in the vertical position as shown in our photos
• Re-Locate your license plate from the bumper, to the Exo Rack on your spare tire
• This kit is Not compatible with the TeraFlex camera Housing or factory brake light, and uses our stainless steel camera housing and aftermarket optional brake and license plate light
• Provision for mounting your JL Backup Camera
• Optional ORO Brake and License Plate Light
• Rotopax, and Pax mounts sold separately, and are not included with this product
• Provides a mounting point for a rear auxiliary pod lights
• Re-use Factory wiring that must be spliced in to work with the optional brake and license plate light
• Quick release thumb screws to remove the license plate bracket as needed(less than 30 seconds to remove)
• Security Sandwich Plate is black powder coat steel, as it helps hold the product in place and aluminum threads would not be sufficient to hold the Exo Rack
• Installation requires a Minimum of 3" from the wheel mounting surface to the edge of your spare tire
• 2 black tie down straps
• Raw Aluminum no powder coat



Fits standard 3 lug tire carrier patterns of 5x5", 5x4.5", 5x5.5", 6x5.5", 8x6.5", 8x170mm. Please exercise judgement and caution when adding extra weight to tire carriers. Vector OffRoad is not liable or responsible if you overload your tire carrier and cause damage to yours or another vehicle. Consult with the manufacturer of your tire carrier for their total weight capacity rating.



- Includes EXO Rack, sandwich mounted base plate, stainless steel Vector Offroad camera housing bracket,  light riser, aluminum license plate relocation bracket, 8.5” All-Thread. If the included length of all-thread doesn’t fit your wheel offset, then a longer piece will need sourced by the customer locally.  7/16"-14 grade 8 all-thread x length needed. Some clean up of the aluminum may be necessary as the PVC protective coating off-gases when laser cut. We do not offer wiring advice, and any wiring should be completed by a qualified professional.  Re-routing and splicing of wires is typically required with installation of the Exo Rack

**Product images may display optional accessories, configurations, or finishes. The actual product may vary slightly from what is shown. If you have any questions regarding what is included with a product, please contact us using the contact page.
